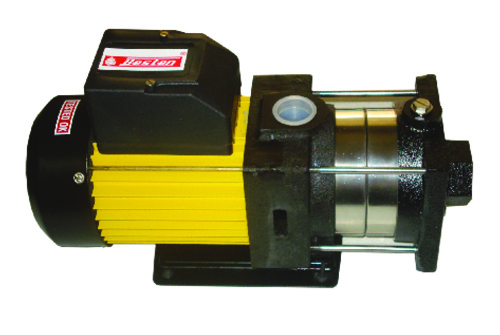

CENTRIFUGAL HORIZONTAL MULTISTAGE (HMS)

CENTRIFUGAL HORIZONTAL MULTISTAGE (HMS)




Insulation :Class 'F'.

Degree of Protection :IP 44.

Impeller/Diffuser/Casing :SS AISI 304.

Shaft :Cr Ni Steel AISI 410.

Motor :2 Pole Induction motor, 50 Hz, 29000 RPM, Single Phase 230 V, +5 to 15% with thermal protection.

Liquid Temp :0 to 60oC.

Automatic start/stop when equipped with pressure control Booster system for domestic water supply.

HP M3 / h l / min Head / m
0.8 HP, 1.0 HP, 1.5 HP and 2.0 HP 0 to 8.4 0 to 140 6 to 70
  • Maintenance Free.
  • High Operating Efficiency.
  • Rigid Construction.
  • Anti corrosive coating on the CI parts Free from rust and corrosion.
  • Low Noise.
  • It is suitable for pumping clear water.
  • Pressure boosting systems.
  • Domestic water supply systems.
  • Cooling systems.
  • Small Industrial water supply systems.
  • Irrigation systems.
  • RO Plants.
  • Water treatments, Water Purification.
S.NO HP Stage TYPE PIPE SIZE (Suction) PIPE SIZE (Delivery) m 3/h
---------
l/min
0 1.2 2.4 3.6 4.8 6.0 7.2 8.4
0 20 40 60 80 100 120 140
1 0.8 0.60 BHMS008 25mm 25mm Head/m 30 25 21 17 6
2 1.0 0.75 BHMS010 25mm 25mm Head/m 40 35 30 26 16 6
3 1.5 1.1 BHMS015L 25mm 25mm Head/m 50 41 37 33 29 24 18 6
4 1.5 1.1 BHMS015H 25mm 25mm Head/m 60 52 47 43 37 30 24 14
5 2.0 1.5 BHMS200 25mm 25mm Head/m 70 51 53 48 41 38 29 20
The above performance are based on a means supply voltage of 220 V-1 ph 50 Cycles.
