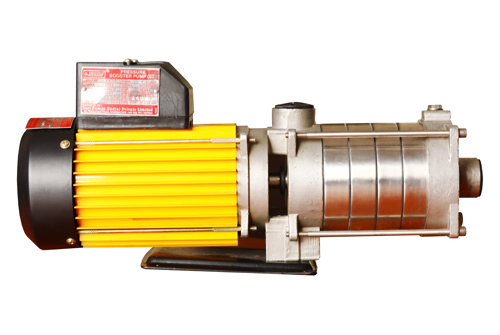

CENTRIFUGAL HORIZONTAL MULTISTAGE (SS)

CENTRIFUGAL HORIZONTAL MULTISTAGE (SS)




Impeller/Diffuser/Suction/Delivery :SS AISI 304.

Shaft :AISI 410.

Special mechanical seal.

HP M3 / h l / min Head / m
1.0 HP, 1.5 HP 0 to 8.4 0 to 140 6 to 70
  • Maintenance Free.
  • High Operating Efficiency.
  • Rigid Construction.
  • Low Noise.
  • It is suitable for pumping clear water hot and cold / Milk / Chemical.
  • RO Plants.
  • Water treatments plants.
S.NO HP Stage TYPE PIPE SIZE (Suction) PIPE SIZE (Delivery) m 3/h
---------
l/min
0 1.2 2.4 3.6 4.8 6.0 7.2 8.4
0 20 40 60 80 100 120 140
1 1.0 0.75 BHMS010 25mm 25mm Head/m 40 35 30 26 16 6
2 1.5 1.1 BHMS015L 25mm 25mm Head/m 50 41 37 33 29 24 18 6
The above performance are based on a means supply voltage of 220 V-1 ph 50 Cycles.
